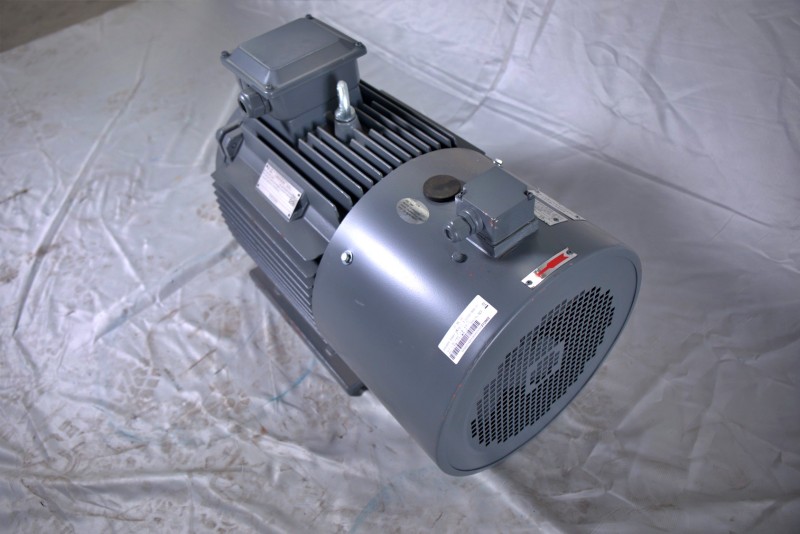

Copper core motor Three-phase motor

Motors are suitable for driving mechanical equipment without special requirements, such as machine tools, pumps, fans, compressors, mixers, transportation machinery, agricultural machinery, food machinery, etc.



Motor Features:
High efficiency, energy saving, large stall torque, low noise, small vibration, safe and reliable operation and convenient maintenance, etc.

Power: 1.5kw 2.2kw 4kw 4.5kw 5.5kw

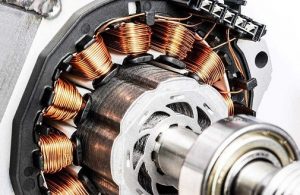

Coil Material: Copper

Working Principle
1. When the three-phase asynchronous motor is connected to the three-phase AC power supply, the three-phase stator winding flows through the three-phase magnetomotive force (stator rotating magnetomotive force) generated by the three-phase symmetrical current and generates a rotating magnetic field.

2. The rotating magnetic field and the rotor conductor have a relative cutting motion. According to the principle of electromagnetic induction, the rotor conductor generates an induced electromotive force and an induced current.

3. According to the law of electromagnetic force, the current-carrying rotor conductor is subjected to electromagnetic force in the magnetic field to form electromagnetic torque, which drives the rotor to rotate. When there is a mechanical load on the motor shaft, it outputs mechanical energy.
