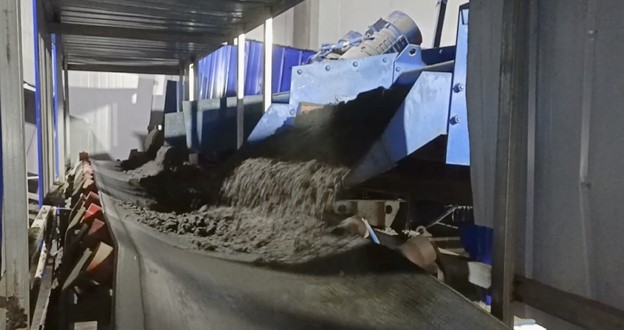

Linear motion coke vibration screen with box exciter

The linear coke screen with box exciter (coke screen) is a kind of coke high efficiency screening equipment.

It is mainly used in the classification screening of the coking industry, and has the advantages of large processing capacity, good screening efficiency, convenient installation and maintenance and so on.

Uses and characteristics.
The new self-synchronous vibration screening principle is suitable for screening all kinds of particle size coke under intermittent or continuous operation spare parts.
The use of multi-element wear-resistant steel group welding comb tooth sieve plate or polycyanide comb, rectangular hole, square hole wear-resistant sieve plate has the characteristics of long life, low noise, high screening efficiency and so on.
The utility model is mainly composed of a vacuum cover, a box-type vibration exciter, a screen box, a spring, a bottom support, a motor and other components.
For installation and use, please refer to the operating instructions and the nameplate on the screening machine.



The moving track of coke screen is quasi-straight line, which is suitable for coke classification in metallurgy, city gas supply, coke production and other departments, and can also be used for material screening in other industries.

The utility model overcomes the shortcomings of mine screen, coal screen and roller screen which have been used for coke classification in the past.

The utility model is characterized by the comprehensive manufacture of equal thickness screen and probability screen technology. When the screen machine works, the material can be quickly stratified and loose, the screening and classification effect is good, and the work efficiency is high.



The sieve plate is made of polyurethane with long service life.

Equipped with a walking trolley, which is convenient for machine maintenance and replacement of vulnerable parts.
The screen box adopts high strength bolt connection technology, which has good rigidity and high strength.
The rated voltage of the motor is 380V, explosion-proof or motors with different rated voltages can be used, please indicate when ordering.
